臺灣陽明FOTEK光幕常用型號有:NA-04E、NA-08E、NA-04SE、NA-08SE、NA-12E、NA-16E、NA-20E、NA-24E、NA-32E、LC-04E、LC-08E、LC-12E、LC-16E、LC-24E、LC-32E、LC-48E、LC-64E

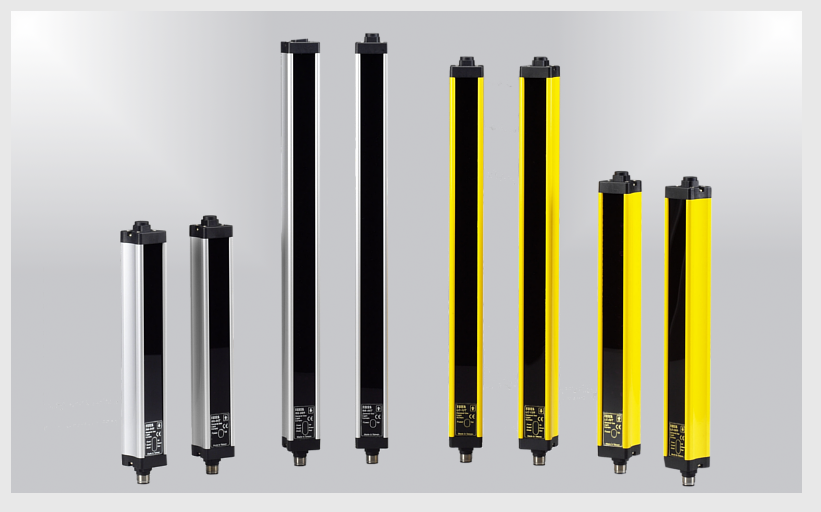

FOTEK臺灣陽明泛用型光幕NA&LC系列特點:
1.具有短路保護和極性反接保護回路。2.NPN NO/NC雙出力,連鎖控制安全更有保障。3.附EMC加強抗干擾電路。
NA series Beam pitch : 40 mm,LC series Beam pitch : 25 mm;
Two way output with NO & NC;Outputwith short-circuit protection;Alltypeareappendedwith「EMC.;en-chanced circuit.
■ Specification / 規格
Model型號 | LC-04E | LC-08E | LC-12E | LC-16E | LC-24E | LC-32E | LC-40E | LC-48E | LC-56E | LC-64E |
Beams光軸數 | 4 | 8 | 12 | 16 | 24 | 32 | 40 | 48 | 56 | 64 |
Protection high(mm)保護高度 | 75 | 175 | 275 | 375 | 575 | 775 | 975 | 1175 | 1375 | 1575 |
Beam pitch光軸間距 | 25 mm | |||||||||
Sensible object最小檢測物 | Opaque object 300 min. | |||||||||
Model型號 | NA-04E | NA-06E | NA-08E | NA-12E | NA-16E | NA-20E | NA-24E | NA-28E | NA-32E | NA-36E |
Beams光軸數 | 4 | 6 | 8 | 12 | 16 | 20 | 24 | 28 | 32 | 36 |
Protection high(mm)保護高度 | 120 | 200 | 280 | 440 | 600 | 760 | 920 | 1080 | 1240 | 1400 |
Beam pitch光軸間距 | 40 mm | |||||||||
Sensible object最小檢測物 | Opaque object 450 min. |
■ GeneralSpecification/ 共同規格
Setting distance | 安裝距離 | 0.5 m?6.0 m |
Operating voltage | 工作電壓 | 24±20%VDC;Ripple±20%P-P max. |
Current consumption | 消耗電流 | 8.0mA/beammax. |
Output method | 輸出方式 | NPNNO&NPNNCtwowayoutput |
Output current | 最大輸出電流 | 100 mA max. |
Output status | 輸出狀態 | All light channel light NO |
Protection circuit | 保護電路 | Short circuit & polarity reversed protection |
Residual voltage | 殘留電壓 | 0.8 V max. |
Leakage current | )曳漏電流 | 0.8 mA max. |
Response time | 反應時間 | 10 ms max. |
Reset time | 復歸時間 | Output reset time < 200 ms |
Illumination | 耐外亂光 | Lamp < 10,000 LUX ; Sunlight < 20,000 LUX |
Protection class | 保護等級 | IP-65 |
Connection method | 接線方式 | M12x1.0CONNECTOR 四芯接頭 |
Housing method | 外殼材質 | Housing : Aluminum ; END CAP : PBT ; Front cover: ACRYLIC |
Circumstance | 使用環境 | 0°C ~50°C; 25%~85%RH |
Vibration resistance | 抗震動 | 10~55HZ/1.5mm,2 小時/X.Y.Z 方向 |
Classification | 認證標準 | CE MARK |
EMC Standard | EMC標準 | ESD:8KVAircharge(level3)/EN-61000-4-2;Bursttest:2KV/EN61000-4-4 RFInterference:10V/M/ENV50140 |
如需購買陽明FOTEK光幕或者了解更多產品信息,請和我聯系,服務電話:+86-0551-65780850
